TV503 Line

THE CUSTOMIZED MACHINE

The TV503 Line is a modular platform designed for countless custom-made solutions. The TV503 Line has been conceived to fulfil the specific needs of each customer in the production of the widest range of napkins, with a productivity up to 2800 napkins per minute and the possibility of realizing different types of fold: N, M, C, MV, Double fold or junior. The TV503 Line i salso suitable for the production of placemats for bars and restaurants in the Ho.re.ca sector. TV503 lines can work paper reels of 500 mm [20”] or 600 mm [23,5”] width and can be equipped with up to 8 flexo printing units, distinguished by the high speed of work change and great efficieny even at short runs. Easy to use and very reliable, thanks to accurate controls and great robustness, the TV503 Line has been designed for a long working life.

  • A single machine for the production of multiple products: with simplicity you can change the format, fold or print.
  • The TV503 Line can process a wide range of materials: one or multi-ply tissue, paper, non-woven materials, air laid.

  • The quick change system for format fast changeover involves huge savings in time and waste.
  • No physical or mental stress for the operator thanks to remote controls.
  • Total safety when using the machine with no need of direct intervention.
  • Protection casing and hand guards.

  • An extensive range of highly reliable and flexible automatic transfer systems allow line’s automation and recuded needs of direct intervention.
  • The machine is completely automatic and automated and easy to use for the operator, thus also guaranteeing maximum performance, reliability and production efficiency.
  • Full control of the machine from the HMI, also in remote and tele service.
  • Simple and intuitive adjustments.


Working width500mm (20''), 600mm (23'')
Max. reel diameter1,800mm (72'')
Number of lanes1
Flexo printing units1 – 8 printing units
Raw materialOne and multi-ply tissue, paper, non-woven materials, air laid
Open format min.180 x 180 mm [7” x 7”]
Open format max.500 x 600 mm [20” x 23,5”]
Mechanical speedUp to 900 m/min [2950 ft/min]
Max. continuous outputOver 2800 napkins/minute (size 300 mm – 12”)
Type of fold¼, N, M, C, MV, Double fold, Junior
TV503 Line
TV503 XP
TV503 SP

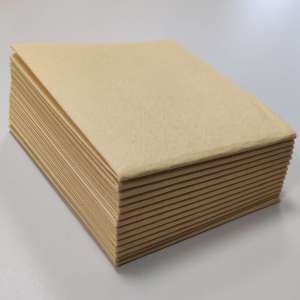

Napkins
